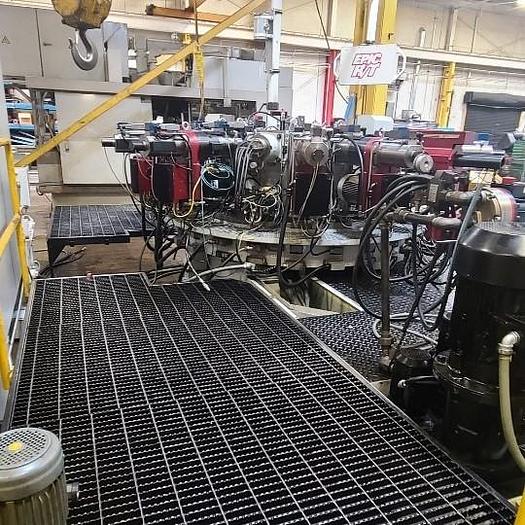

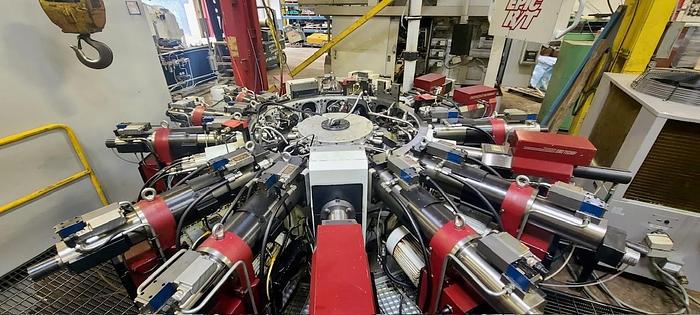

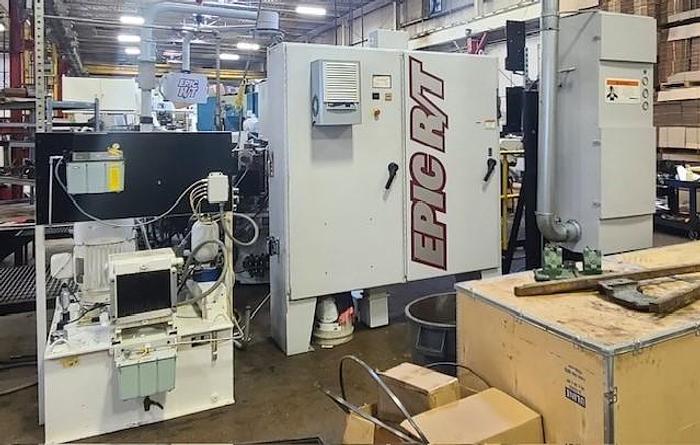

Hydromat Epic R/T 32/45-16 Rotary Transfer Machine

Hydromat Epic R/T 32/45-16 Rotary Transfer Machine

Contact us for price

Toledo, OH

orCall 419-350-2986

Description

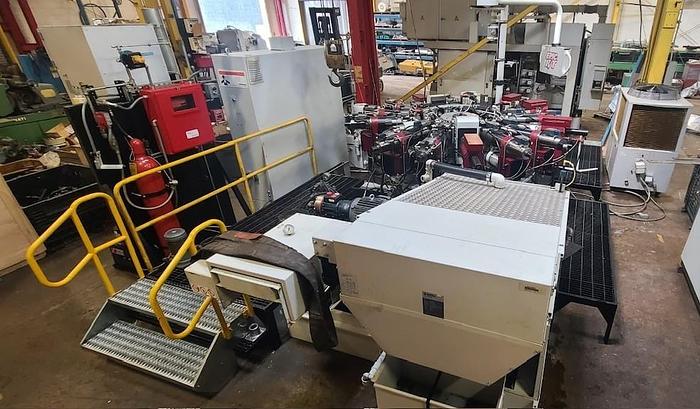

Hydromat Epic R/T 32/45-16 Rotary Transfer Machine

Model: Epic R/T 32/45-16

Mfg: Hydromat

YOM: 2011

Equipped with:

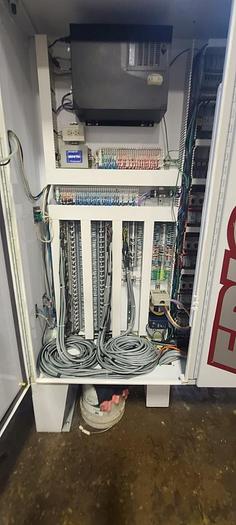

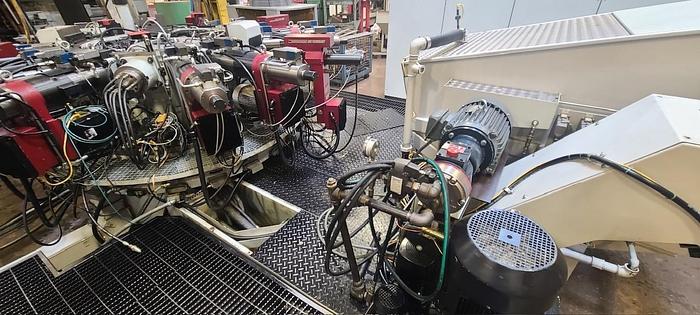

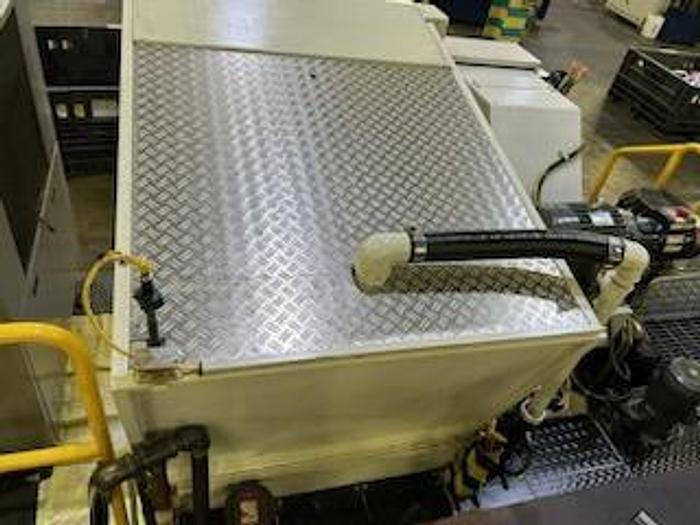

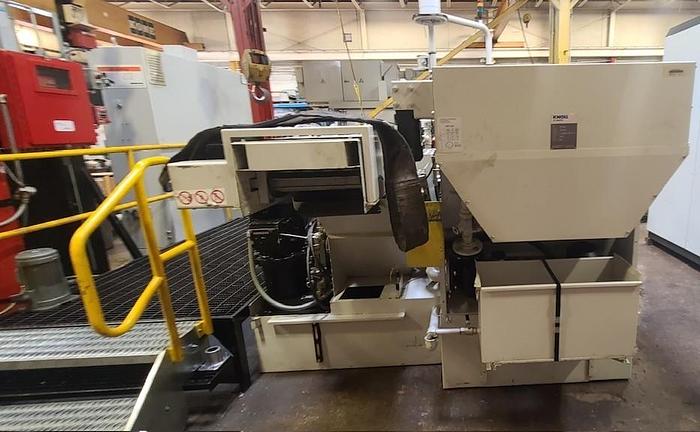

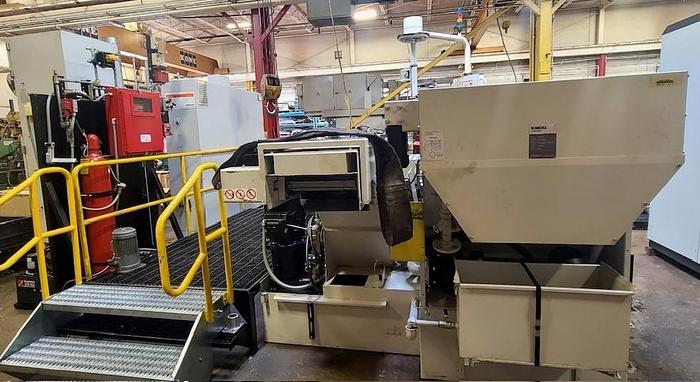

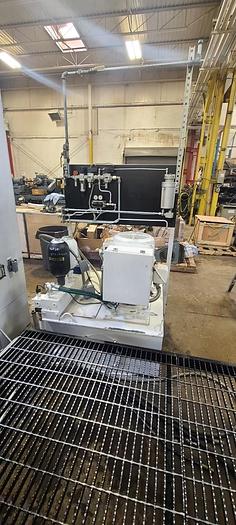

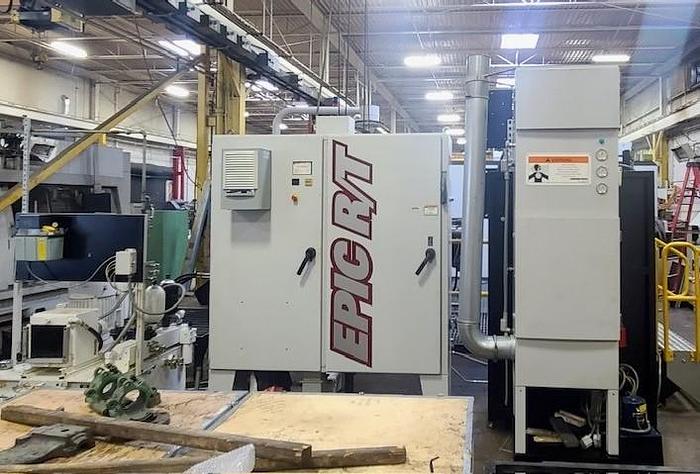

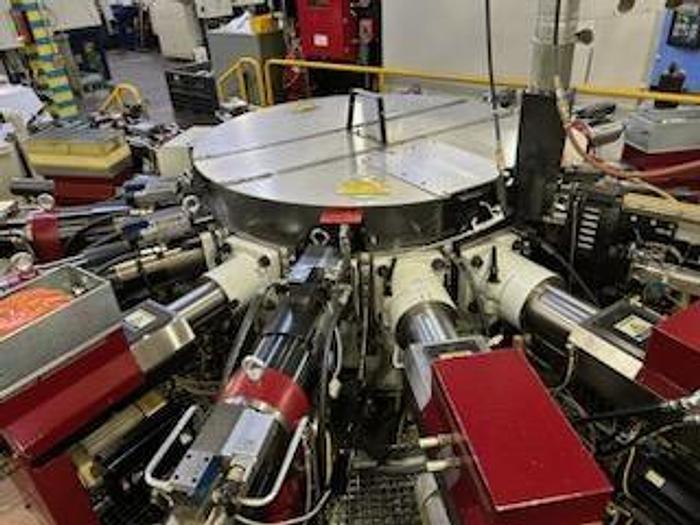

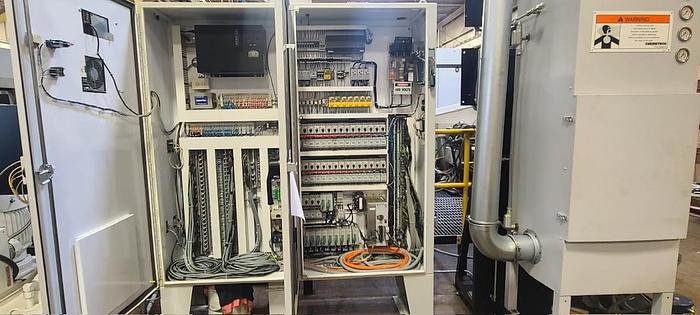

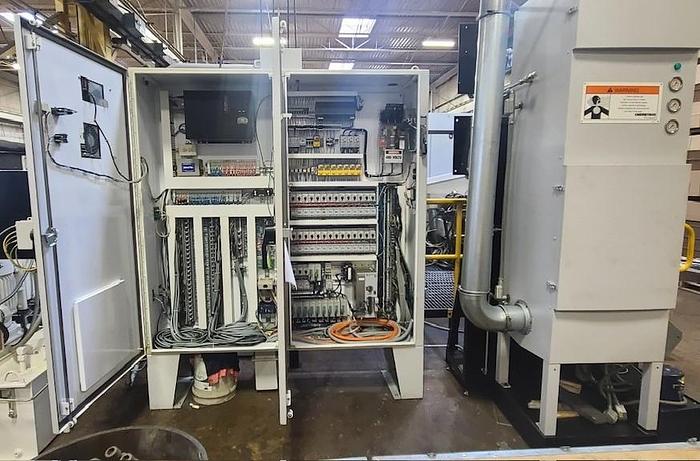

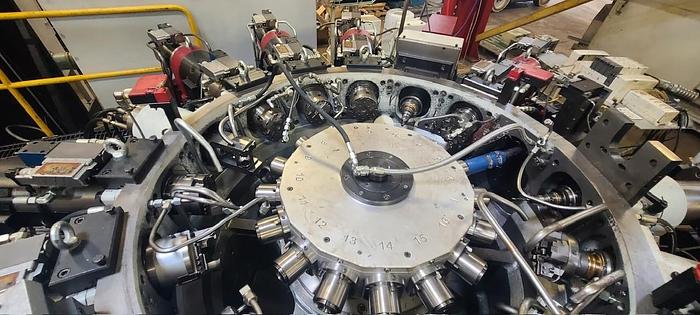

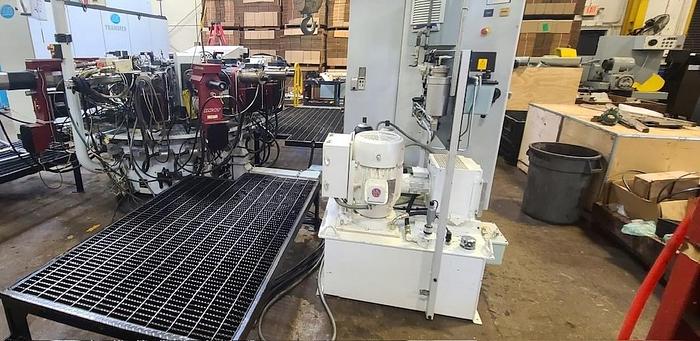

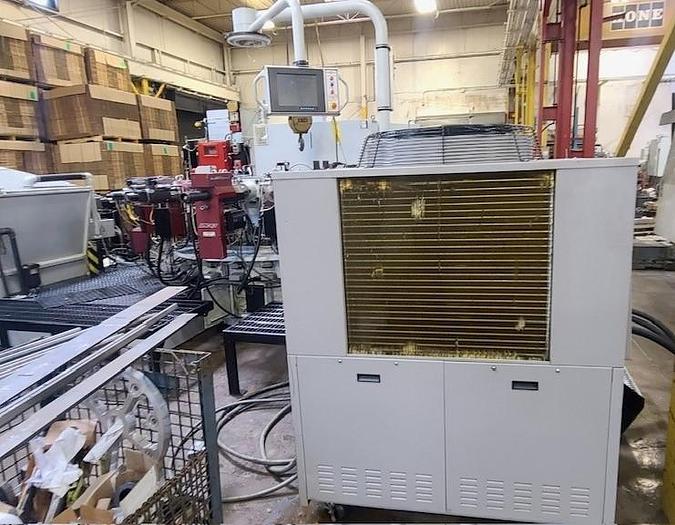

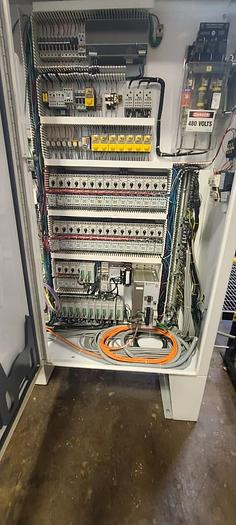

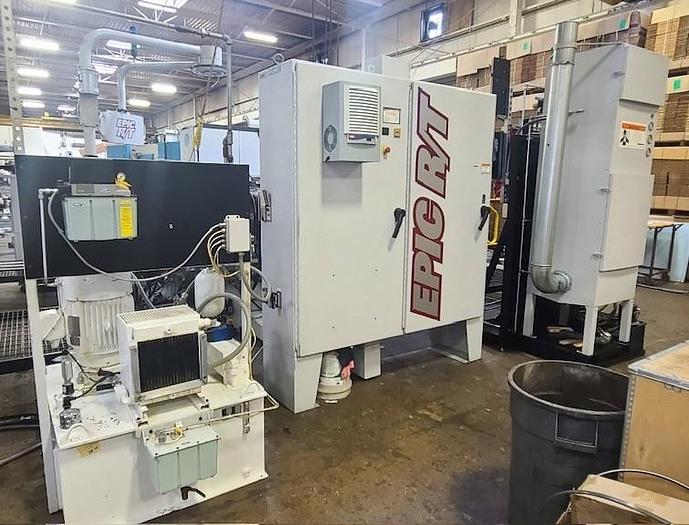

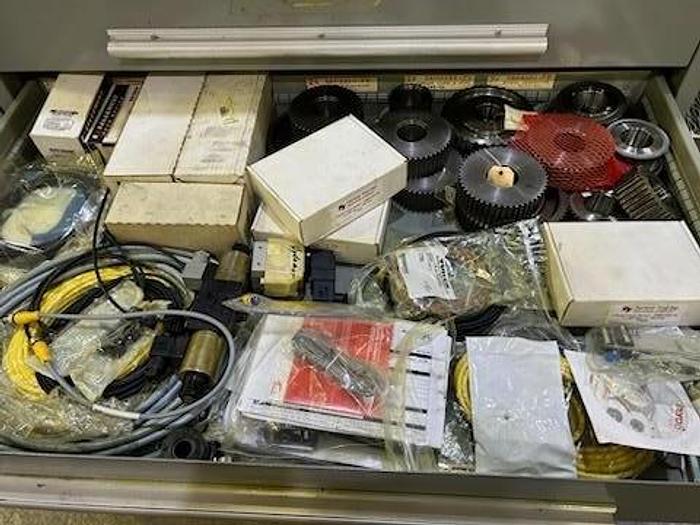

Hydromat Hydraulic power unit (50 Gallon Reservoir), Allen Bradley Control, Hydraulically actuated indexing table with 16 fixtures, Swiveling Pendant with Operator Touchscreen, 450 Gallon Coolant Tank, High Pressure Coolant Pump (Knoll KTS 25/60T), Coolant Chiller, Load/Unload Unit, Inverting Bushing Round, Toolspindle Unit Epic 36/100 Single Axis Servo, Toolspindle Unit Epic 36/100 FQ Single Axis Servo, Toolspindle Unit Epic 46/120 Single Axis Servo, Toolspindle Unit Epic 50/100 Double Axis Servo, Single Point Threading Upgrade for Epic 50/100 (makes unit 3-axis control), some spare parts.

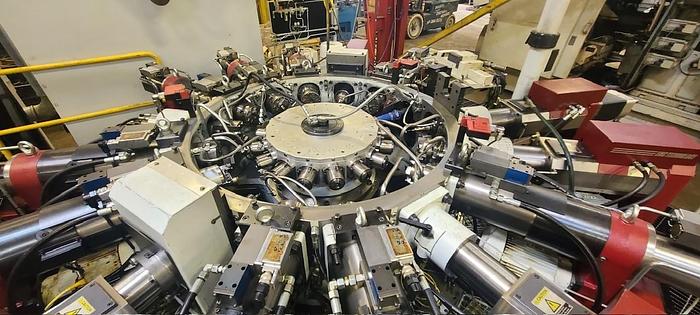

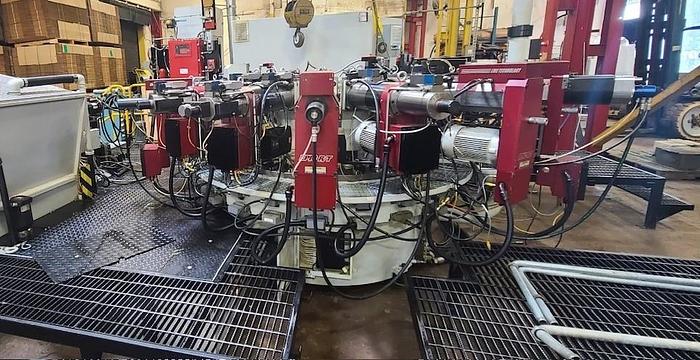

Station 1: Load & Cut Off, Station 2: Rough Turn, Station 3:  Rough Turn, Station 4: Finish Turn, Chamfer, Station 5: Finish Form Drill, Station 6: Finish Grooving R0.10", Station 7: Rough Turn Grooves, Station 8: ID Recess Interpolate Mill, Station 9: Finish OD Grooving, Station 10: Knurl, 4x Notches, Station 11: Invert, Station 12: Rough Face, Station 13: Rough Bore, Station 14: Bore & Finish ID, Station 15: Interpolate Thread Mill, Station 16: Open



Call for more details

Specifications

ManufacturerHydromat
ModelEpic R/T 32/45-16
Year2011
ConditionUsed
