2006 Doosan Daewoo DMV-3016 CNC Vertical Machining Center w/ 4-Axis

Sold

2006 Doosan Daewoo DMV-3016 CNC Vertical Machining Center w/ 4-Axis

Location:Toledo, OH

Description

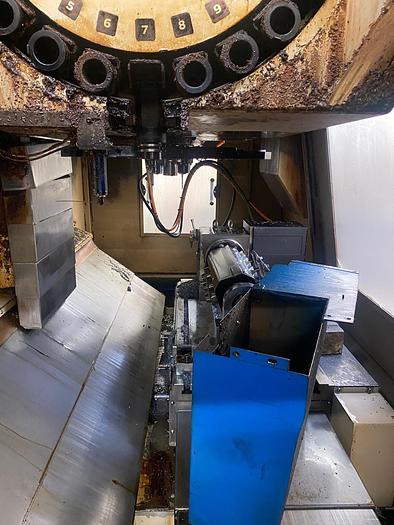

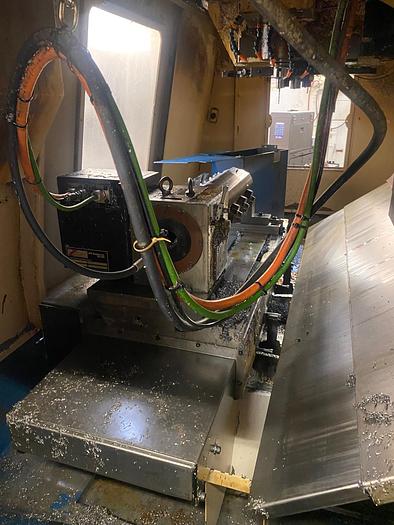

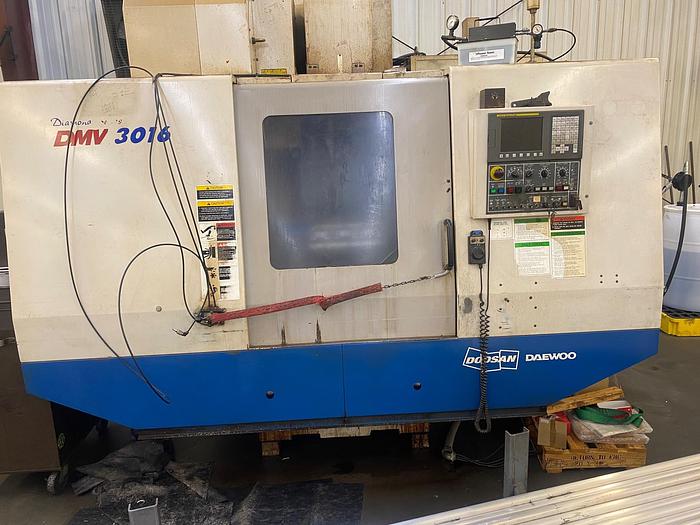

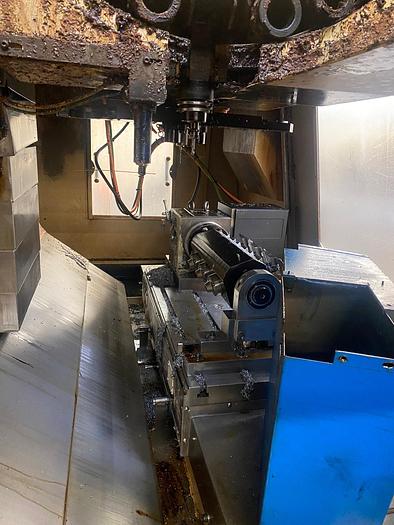

Daewoo Doosan DMV-3016 4-Axis CNC Vertical Machining Center with Rotary Table

Manufacturer: Daewoo Doosan Model: DMV-3016

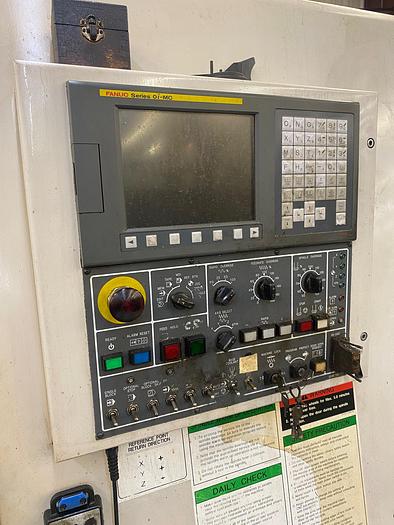

Specs: Machine Control: Fanuc 0iMB CNC Control

Table Size: 39.4" x 17.7" Working Surface

Machine Travels (X/Y/Z): 30" x 16" x 20"

Spindle To Table Distance: 5/9" - 26"

Table Capacity: 1,332 Lbs.

Spindle Taper: Cat 40

Spindle Speeds: 0-12,000 RPM

Rapid Traverse Rate (X/Y/Z): 1,181 IPM

Tool Changer Style: Twin-Arm

Tool Changer Capacity: 24 Stations

Spindle Drive: 20 HP

Equipped With: Fanuc 0iMB CNC Control, 4-th Axis Control, 24 Station Twin-Arm Automatic Tool Changer, 12,000 Max Spindle RPM, Cat 40 Spindle Taper, Remote Jog Handwheel, Coolant System, Thru Spindle Coolant (290 PSI), Chiller, Electrics:220 Volt, 3 Phase Main Unit Dimensions (in inches): Length: 89.00" Width: 95.00" Height: 108.00"

Components:

L-Shaped Coolant Tank: Length: 90.00" Width: 69.00" Height: 17.00"

Chiller: Length: 16.00" Width: 20.00" Height: 39.00"

Specifications

ManufacturerDoosan Daewoo
ModelDMV-3016
Year2006
ConditionUsed
Stock Number0307486
