1998 33 TON AMADA VIPROS 368 KING CNC TURRET PUNCH

1998 33 TON AMADA VIPROS 368 KING CNC TURRET PUNCH

Contact us for price

Location:Toledo, OH

orCall 419-350-2986

Description

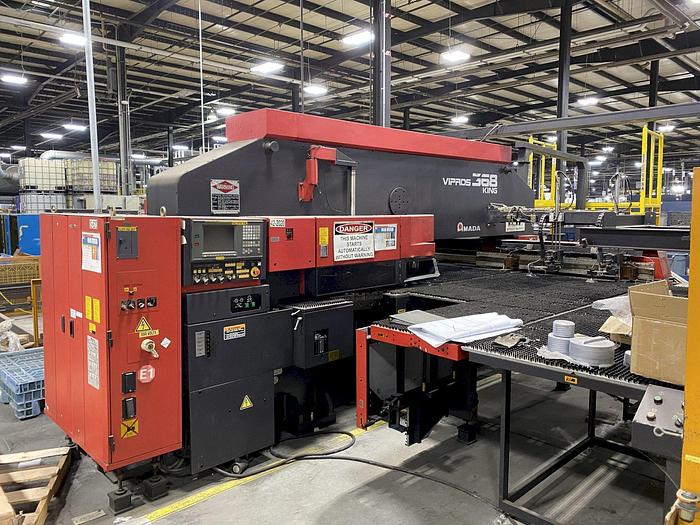

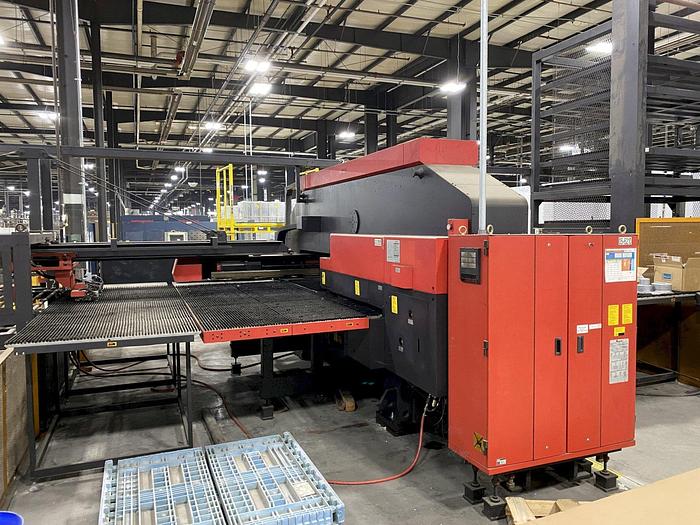

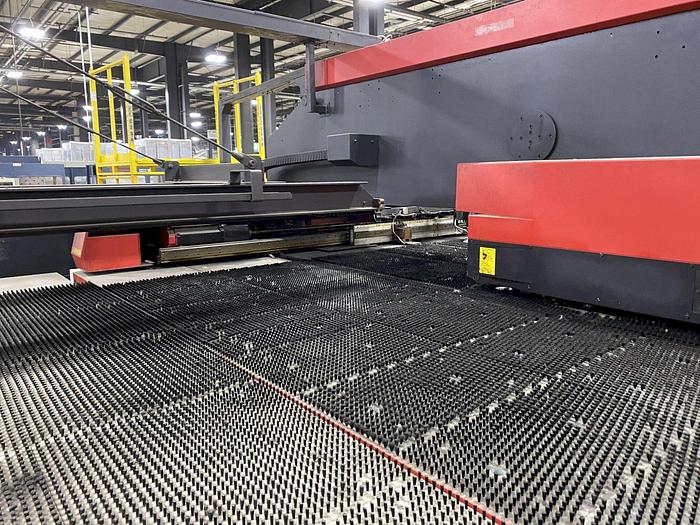

33 TON AMADA VIPROS 368 KING CNC TURRET PUNCH WITH LOADING TOWER AND UNLOADER SYSTEM

Mfg: Amada

Model: Vipros 368 King

Tonnage Capacity: 33 Tons

Maximum Sheet Size: 60″ (Y) x 157.50″ (X) with repositioning

Maximum Axis Travel: 60″ (Y) x 78.74″ (X)

Max. Linear Table Speed: 3150″ per min.

Punching Accuracy: +/-0.004″ Hole to Hole

Maximum Sheet Thickness: 0.125″

Maximum Material Weight: 132 lb.

Press Stroke: 1.575″

Maximum Hole Diameter: 4.5″

Turret Rotation Speed: 30 RPM

Turret Capacity:.58 Stations (4 auto-index)

Control Function: X, Y, T & C

Input Method: MDI, Floppy Disk Drive, RS-232

Minimum Command Unit: 0.001″ (X, Y)

Minimum Travel Unit: 0.001″ (X, Y)

Control: Fanuc 18

Control Function: X, Y, T & C

Input Method: MDI, Floppy Disk Drive, RS-232

Minimum Command Unit: 0.001″ (X, Y)

Minimum Travel Unit: 0.001″ (X, Y)

Operating Modes: Automatic, MDI & Manual

Display Modes: Program Contents, Position Information, Program Check, Parameters, Tool Hit Counter, Self Diagnostics

Interlock Displays: Oil Temperature, Door Open

 Equipped with:

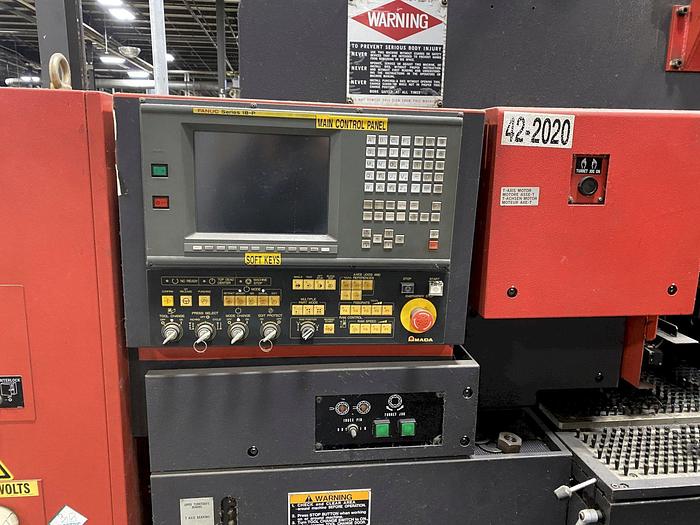

Fanuc 18P CNC Control

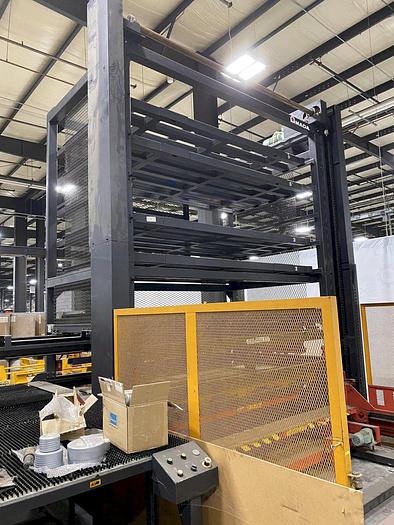

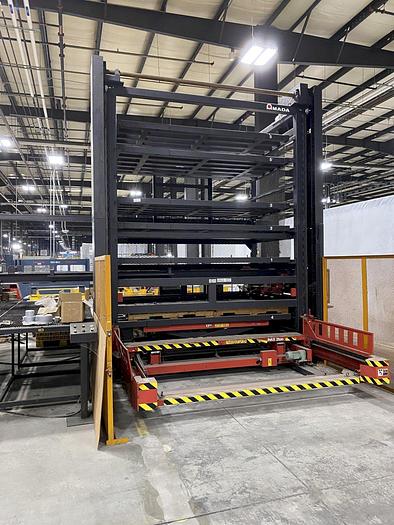

ASR 6 Automated Tower Loading System (loader can be removed if not need)

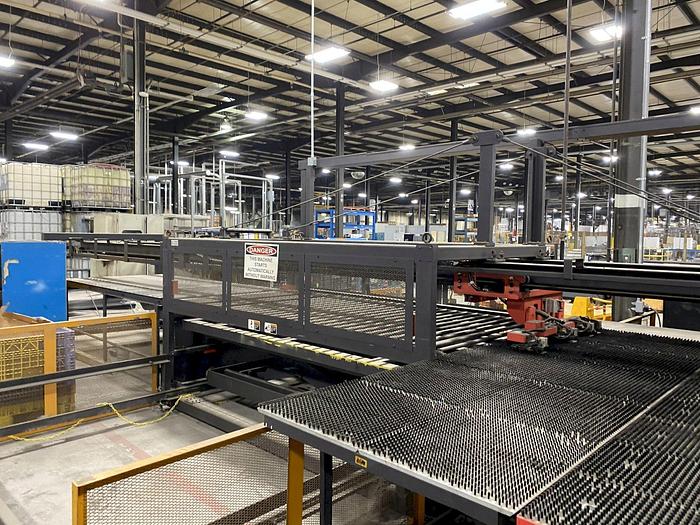

Unloading System (loader can be removed if not need)

Guide Assemblies

Specifications

ManufacturerAmada
ModelVIPROS 368 KING
Year1998
ConditionUsed
Stock Number0307475
