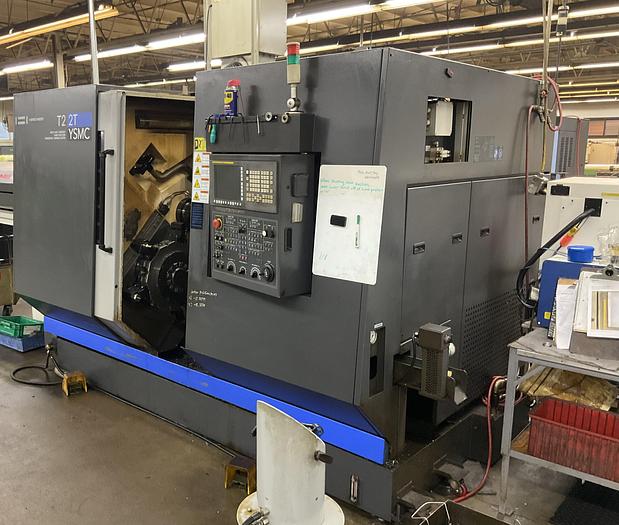

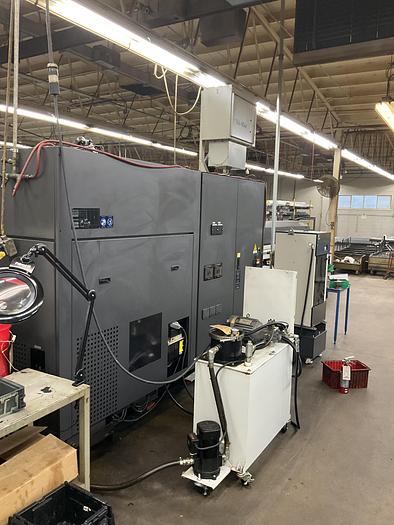

2013 Hwacheon T2-2T YSMC Multi-Axis CNC Lathe

Sold

2013 Hwacheon T2-2T YSMC Multi-Axis CNC Lathe

Location:Toledo, OH

Description

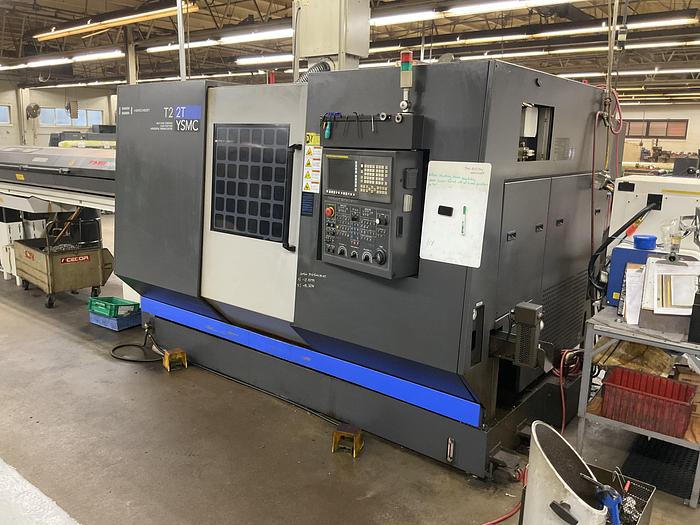

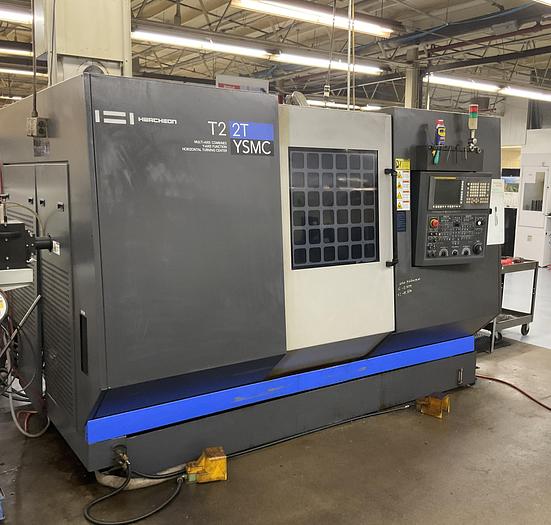

Hwacheon T2-2T YSMC Multi-Axis CNC Lathe, Dual Spindle, Live Tooling

Mfg: Hwacheon

Model: T2-2T YSMC

YOM: 2013

Swing Over Bed: 34.6"

Max. Cutting Diameter: 18.10"

Standard Cutting Diameter: 11.80"

Max. Cutting Length: 17.40"

Spindle Motor: 20 HP

Spindle Nose: A2-6

Hole Through Spindle: 3"

Max. Bar Size: 2.56"

Spindle Bearing Inner Diameter: 4.72"

Max. Spindle Speed: 5000 RPM

Rapid Traverse Rates: 1181 IPM (All Axis Except Y)

Y-Axis Rapid Speed: 590 IPM

Max. Stroke (X1/X2/Z1/Z2/Y/B):(9.65"/8.27"/20.47"/20.47"/3.94"/21.64")

Feed Motor (X1/X2/Z1/Z2/Y/B):(5.5/4/5.5/5.5/2.2/5.5) HP

Live Tooling Spindle Motor: 10 HP

Live Tooling Speed: 6,000 RPM

Number of Tool Station: 12 + 12 EACH

Machine Dimensions: 122.05" x 85.83" x 82.68"

Machine Weight: 21,000 LBS

Equipped with:

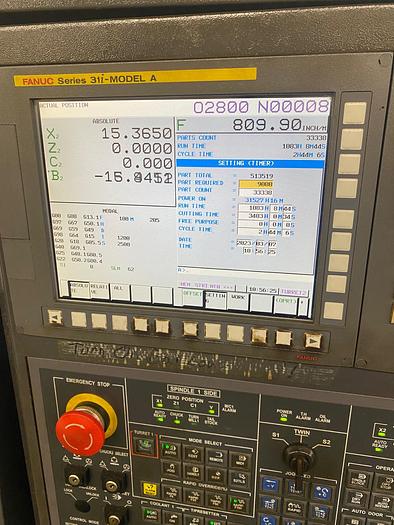

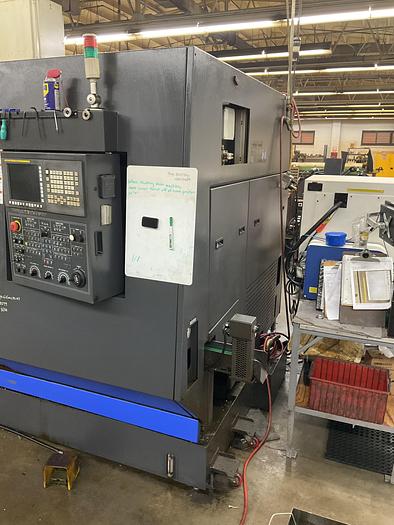

 Fanuc 31i-Model A CNC Control with 10.4” LCD Monitor

(2) 8" Collet Chucks

Tool Presetter

Rigid Tapping

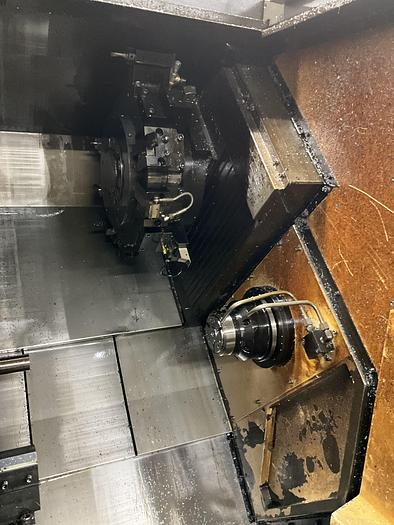

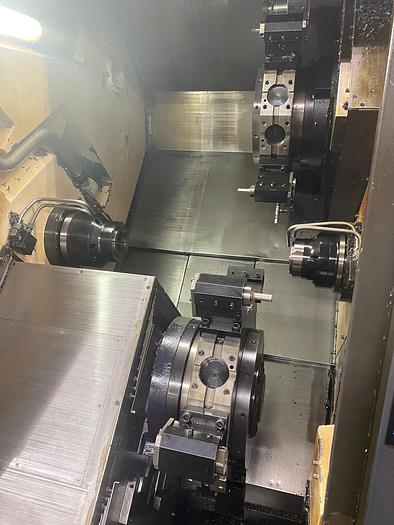

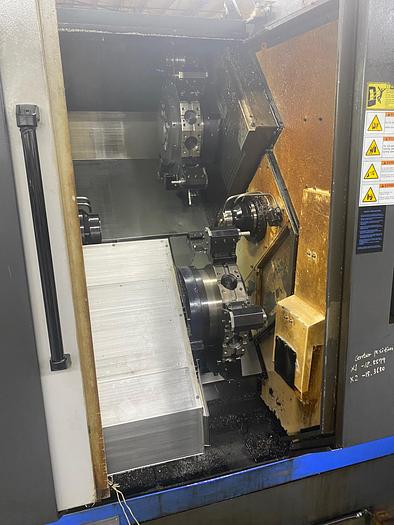

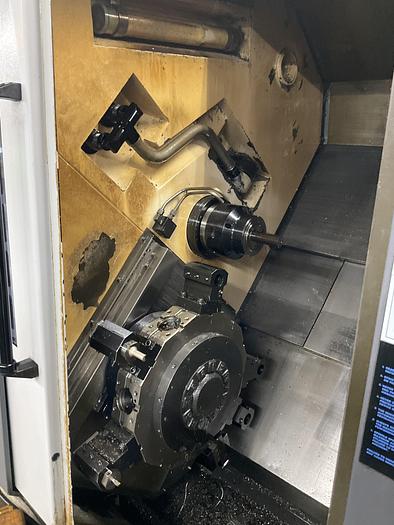

Dual Turrets

Live Tooling

No Bar Feeder Included with Machine

Power On Hours: 31527

Run Time: 1,083

Cutting Time: 3,483

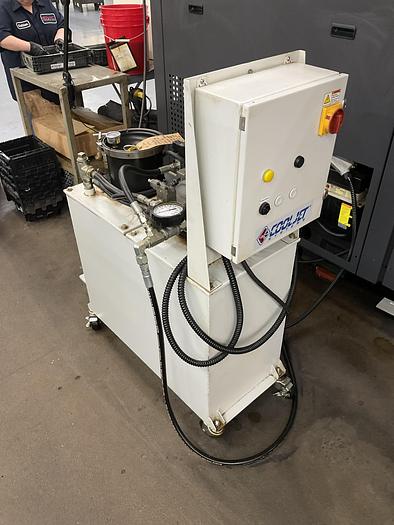

Options on unit were: Tool Presetter (8"), Parts Catcher, High Pressure Pump, Chuck Pressure Switch, Radial Tool Holder (Angular), Barfeeder Interface, Load Monitoring

Run Time Hours & All Specifications Subject to Buyer's Verification




Specifications

ManufacturerHwacheon
ModelT2-2T YSMC Multi-Axis CNC Lathe
Year2013
ConditionUsed
Stock Number0307340
