2008 Accurpress 175-Ton X 12' CNC Hydraulic Press Brake Advantage 717512

Accurpress Advantage 717512 CNC Press Brake

SPECIFICATIONS:

MFG: ACCURPRESS

CAPACITY.........................175 TONS

YOM:.......................................................2008

OVERALL LENGTH OF BED & RAM......12'

DISTANCE BETWEEN FRAMES..........124"

STROKE...........................8"

THROAT DEPTH.....................10"

OPEN HEIGHT......................14"

CLOSED HEIGHT....................6"

SPEEDS: FAST APPROACH....................80 IPM

SLOW BEND........................17 IPM

FAST RETURN......................80 IPM

APPROX. CYCLES PER MINUTE........15

BACK GAUGE RANGE.................24"

BED HEIGHT.......................34"

BED CAP WIDTH....................8"

MAIN MOTOR HORSEPOWER............20

DIMENSIONS (APPROX)..............140"(L) x 47"(W) x 82"(H)

WEIGHT (APPROX)..................24,000 LBS

EQUIPPED WITH:

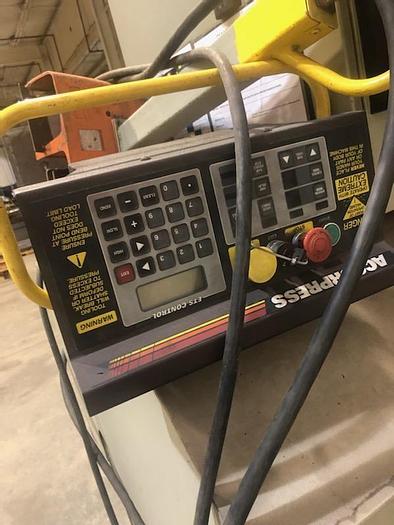

ETS 3000 CNC CONTROL

ADVANTAGE PACKAGE

SOME TOOLING INCLUDED

BECKHOFF CNC CONTROL

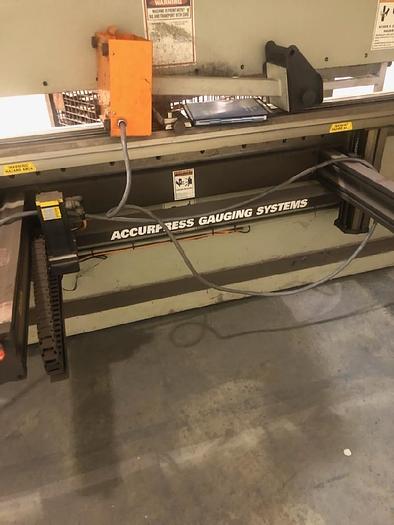

2-AXIS PREMIUM BACKGAUGE

ADJUSTABLE BENDING SPEED CONTROL
