2003 Okuma L370MW CNC Lathe with LNS Hydrobar Barfeeder

Sold

2003 Okuma L370MW CNC Lathe with LNS Hydrobar Barfeeder

Toledo, OH

Description

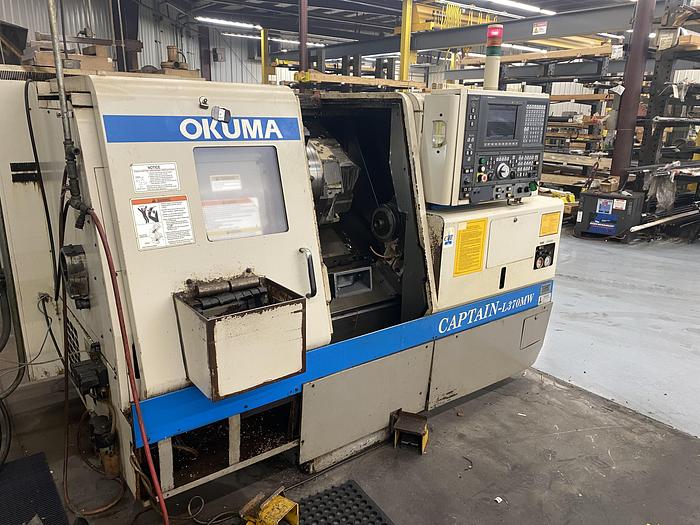

This Item has been Sold - Okuma Captain L370MW CNC Lathe w/ Sub Spindle Live Tooling and LNS Barfeeder

Model: Captain L370MW

Year: 2003

Approx. Shipping Weight: 9,900 Lbs

Approx. Shipping Dimensions: 107″ x 70″ x 86″

Specifications:

Swing Over Bed: 20.87″

Swing Over Carriage: 20.87″

Swing Over Cross Slide: 16.54″

Turning Diameter: 14.56″

Center Distance: 19.68″

Bar Capacity: 2″

X Axis Travel: 10.23″

Z Axis Travel: 20.47″

Rapid Traverse (X): 787 IPM

Rapid Traverse (Z): 987 IPM

Main Spindle Speed: 4,500 RPM

Main Spindle Motor: 20 HP

Main Spindle Nose: A2-6

Number of Turret Stations: 12

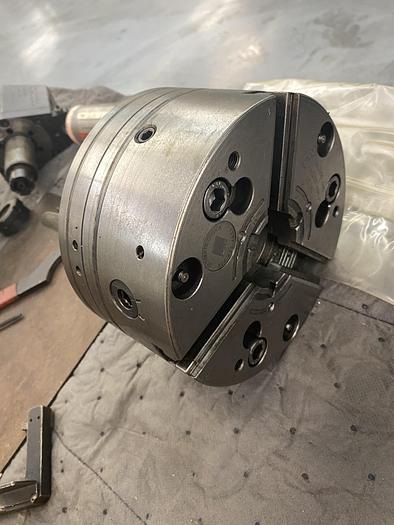

Sub Spindle Chuck Diameter: 6″

Sub-Spindle Spindle Speed: 6,000 RPM

Sub Spindle Motor: 10 HP

Live Milling Motor: 7.5 HP

Live Tooling Speed: 4,000 RPM

Equipped With:

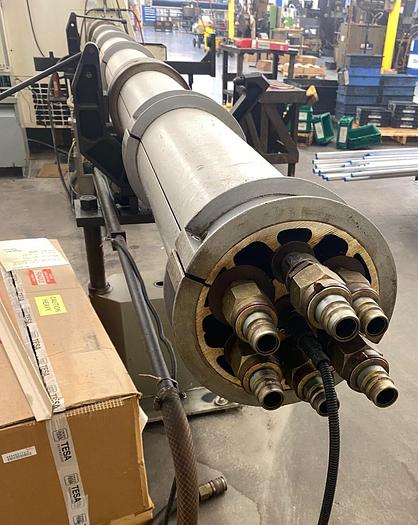

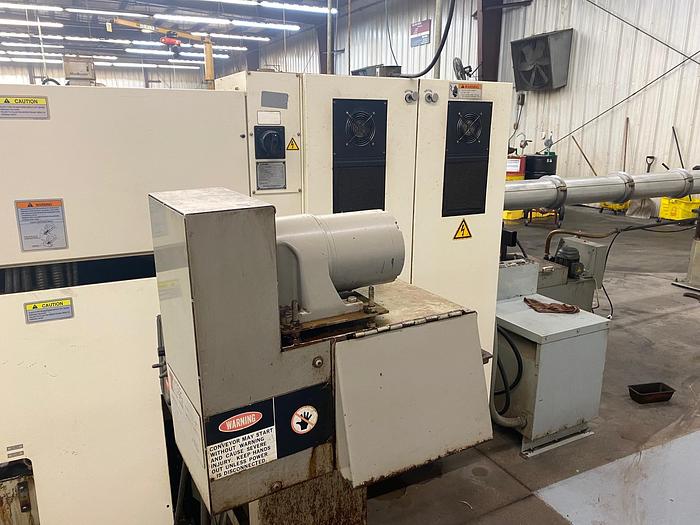

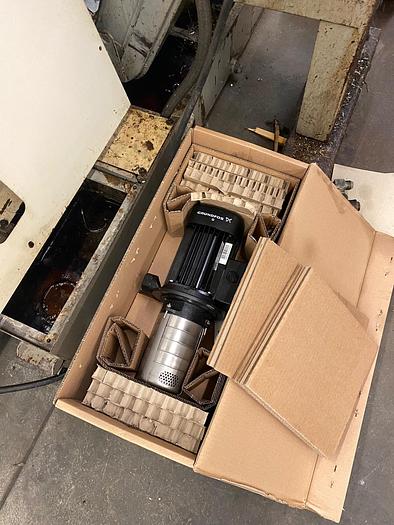

OSP-E100L CNC Control, LNS Hydrobar Barfeeder, New Grundfos Coolant Pump, Turbo Systems Chip Conveyor


All Specifications subject to Buyer's verification

Specifications

ManufacturerOkuma
ModelL370MW CNC Lathe with LNS Hydrobar Barfeeder
Year2003
ConditionUsed
Stock Number0307316
