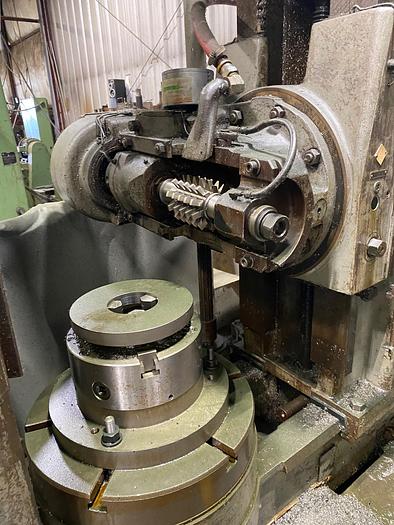

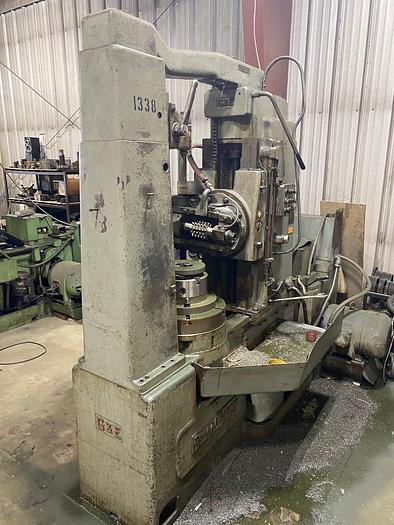

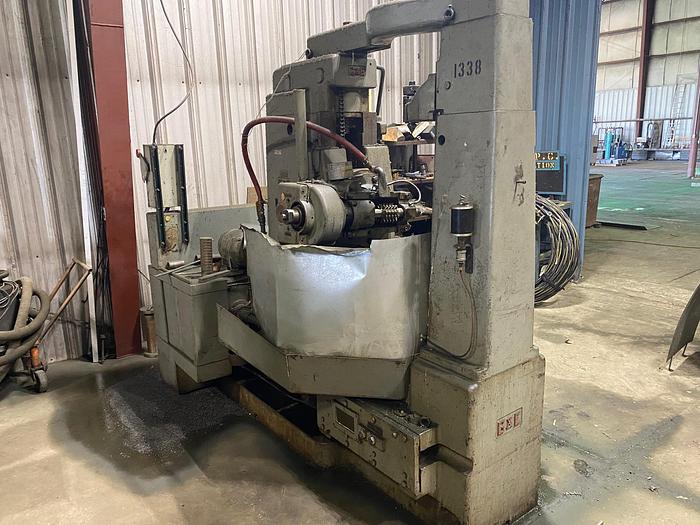

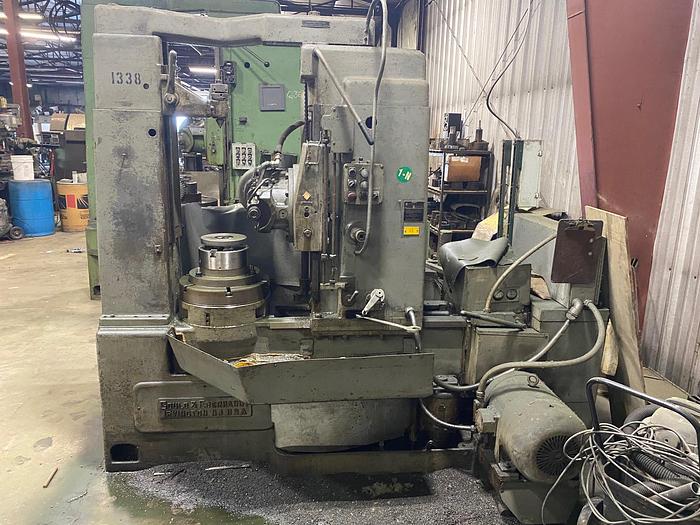

GOULD & EBERHARDT 24H Gear Hobber

GOULD & EBERHARDT 24H GEAR HOBBER

DIAMETRAL PITCH RATING (MAXIMUM): 3.5 DP

SPUR GEAR DIAMETER (MAXIMUM): 30"

HELICAL GEAR DIAMETER (MAXIMUM) 24"

FACE CAPACITY (SPUR & PINION) 13"

FACE CAPACITY (HELICAL) 10"

WORK TABLE DIAMETER 18

HOB DIAMETER (MAXIMUM) 6"

HOB SPEEDS 86 - 200 RP

INDEX RANGE (INCLUDING PRIMES 8 - 100

INDEX RANGE (EXCLUDING PRIMES) 100 - 200

FEEDS (15) .003 - .250"

MAIN MOTOR 7 HP

DIMENSIONS, APPROX. 100"L x 60"W x 92"H

WEIGHT, APPROX. 12,000 lbs.
