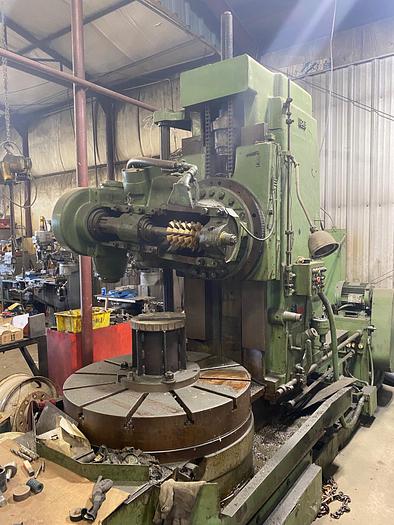

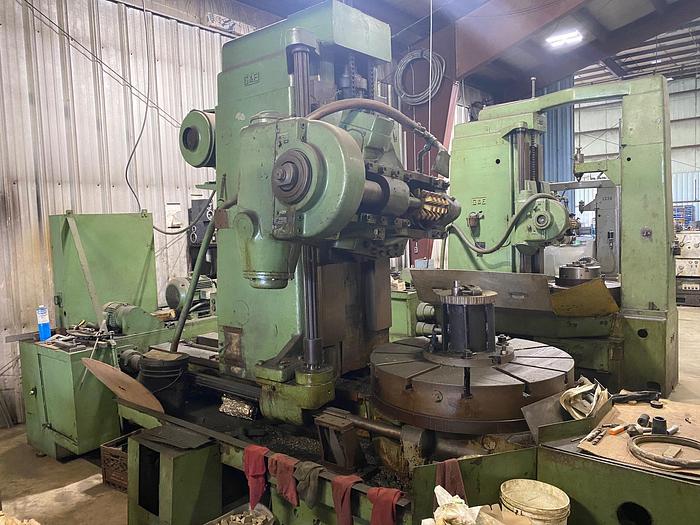

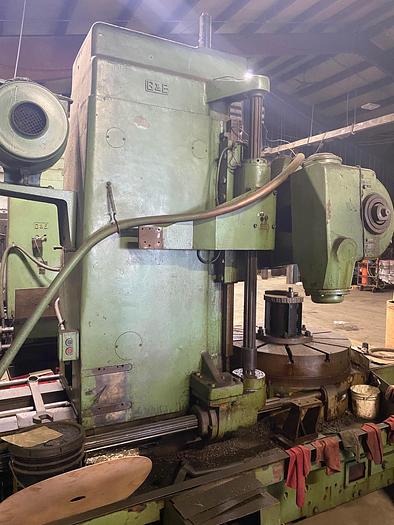

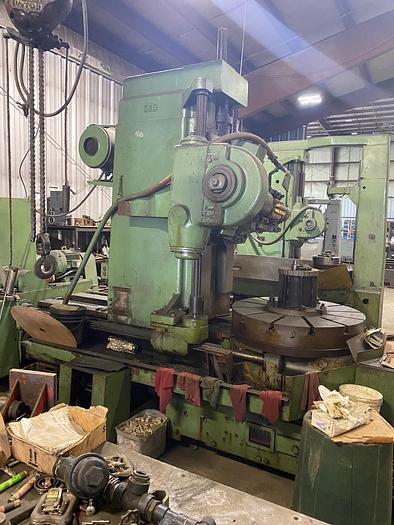

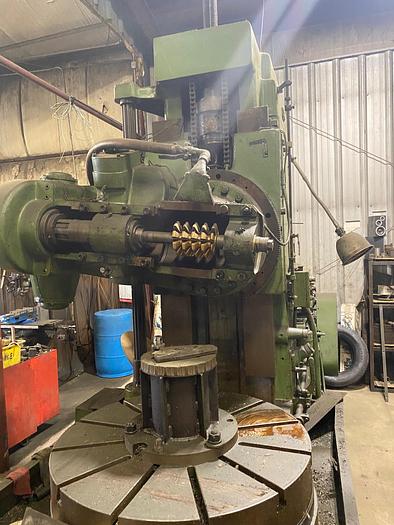

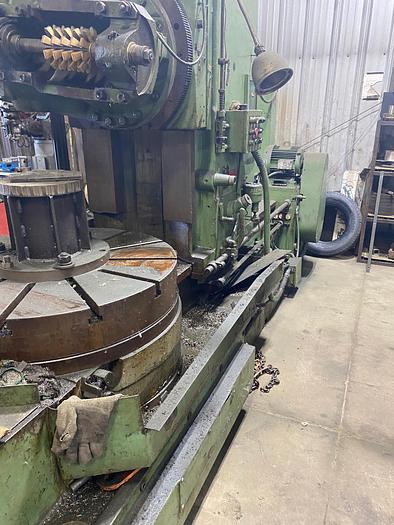

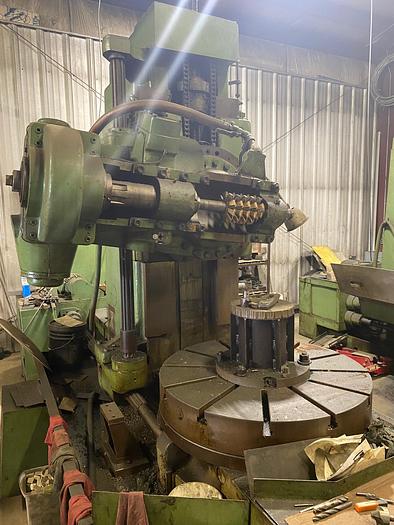

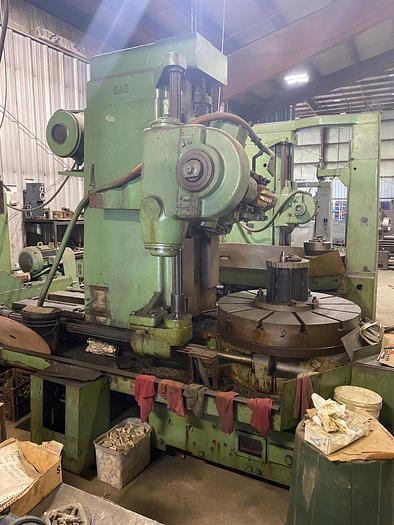

GOULD & EBERHARDT 72 HWD Gear Hobbing Machine

GOULD & EBERHARDT Model: 72 HWD GEAR HOBBING MACHINE

Model 72 HWD

Machine specifications are as follows:

Max. DP in Steel.....................................................1. DP

Face Capacity............................................................30"

Max. Dia Spur Gear w/ Support............................................48"

Max. Dia Spur Gear w/o Support...........................................80"

Max. Dia Helical Gear w/o Sup (45 Deg)...................................78"

Min Centers Work & Hob Arbors.............................................3"

Max. Diameter Hob.....................................................10.75"

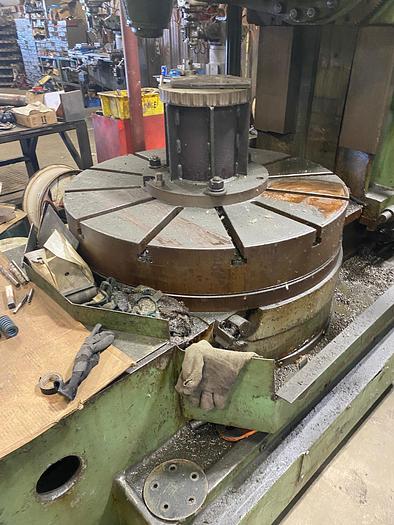

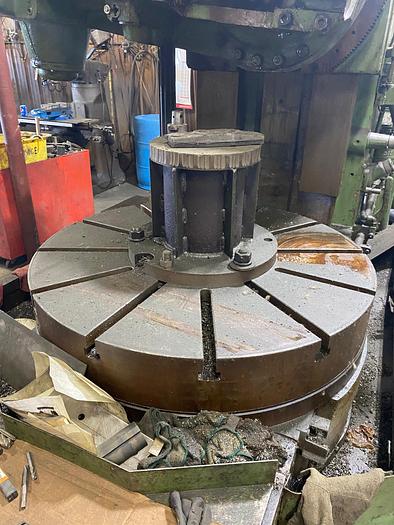

Diameter of Work Table...................................................40"

Diameter of Index Worm Gear..............................................48"

Hob Speed Ranges................................................6 - 100 RPM

Feed Range...................................................... .03 - .200"

Main Motor............................................................15 HP

Approx. Dimensions................................................90" x 207"

Approx. Weight...................................................38,000 Lbs

MACHINE IS EQUIPPED WITH The Following:

*Automatic Single Indexing

*Differential

*Infeed

*Tailstock for large Pinions

*Hob Arbors

*Large assortment of change gears

*Misc Tooling

Also Selling a Gould & Eberhardt Model: 24H & 48H Gear Hobbers
