2 HP Bridgeport Vertical Knee Mill Series I

2 HP BRIDGEPORT VERTICAL MILL SERIES I

MODEL ......................... SERIES I

AREA OF TABLE ................. 42" X 9"

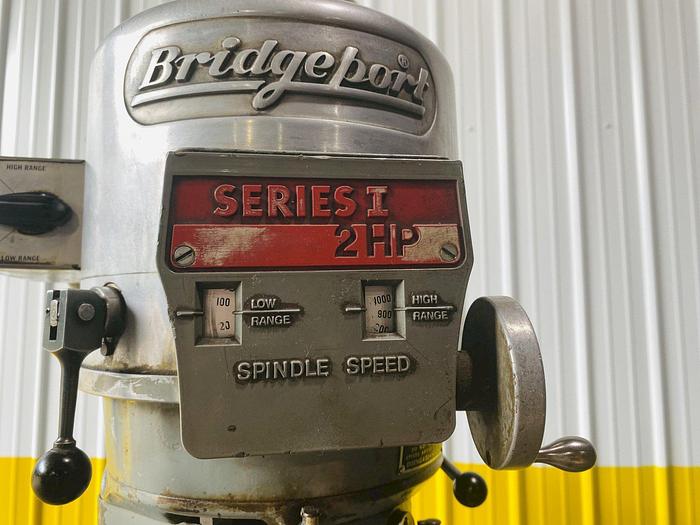

SPINDLE SPEEDS, VARIABLE ...... 60 TO 4200 RPM

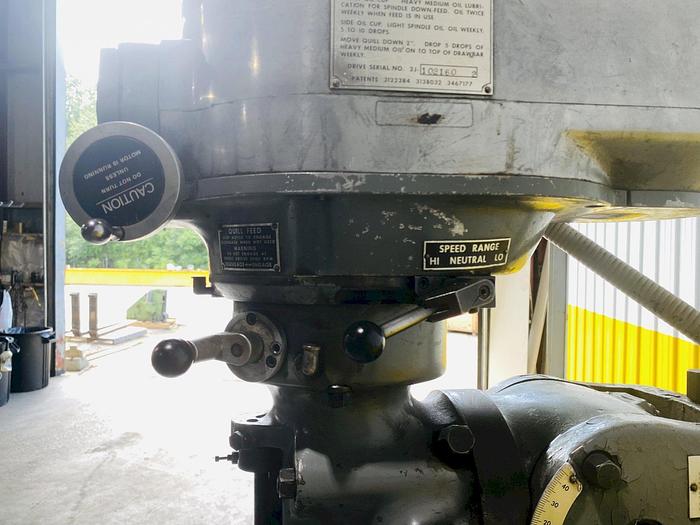

SPINDLE FEEDS ................. .0015, .003, .006 IPR

LONGITUDINAL TABLE TRAVEL ..... 30"

CROSS TRAVEL .................. 12"

VERTICAL KNEE TRAVEL .......... 16"

QUILL TRAVEL .................. 5"

RAM TRAVEL .................... 12"

DEPTH OF THROAT ............... 6-3/4" TO 18-3/4"

TAPER IN SPINDLE .............. R8

HEAD TILTS, FRONT/BACK ........ 45 DEGREE EITHER WAY

HEAD SWIVELS, LEFT/RIGHT ...... 90 DEGREE EITHER WAY

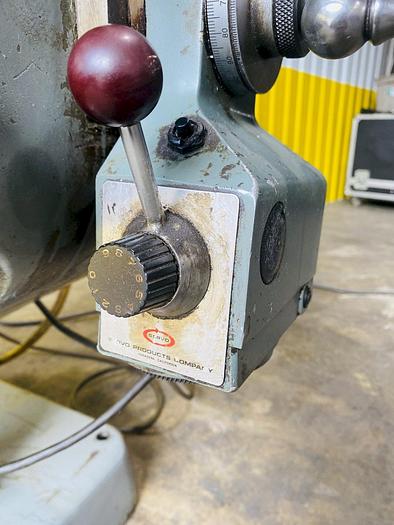

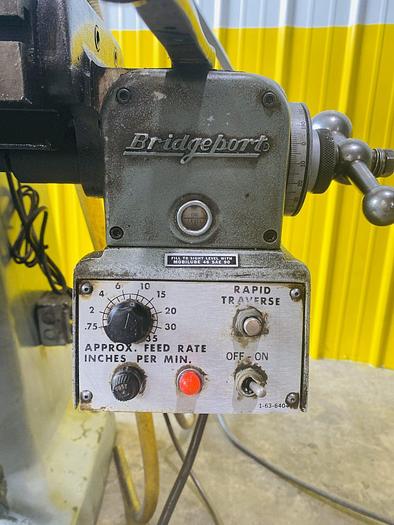

POWER FEED .................... YES

CHROME WAYS ................... YES

1 SHOT LUBE ................... YES

COOLANT TRAY .................. YES

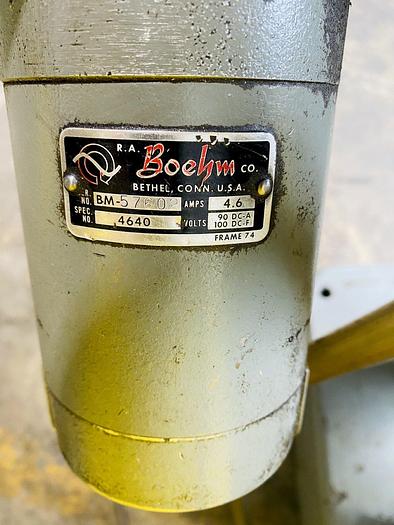

MOTOR ......................... 2 HORSEPOWER
