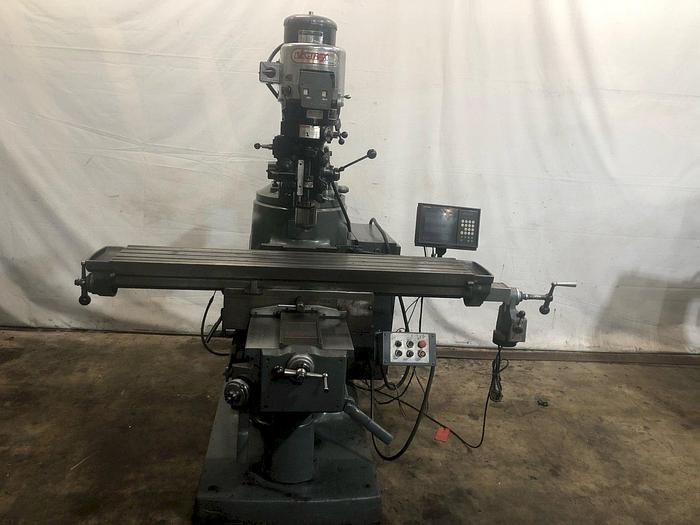

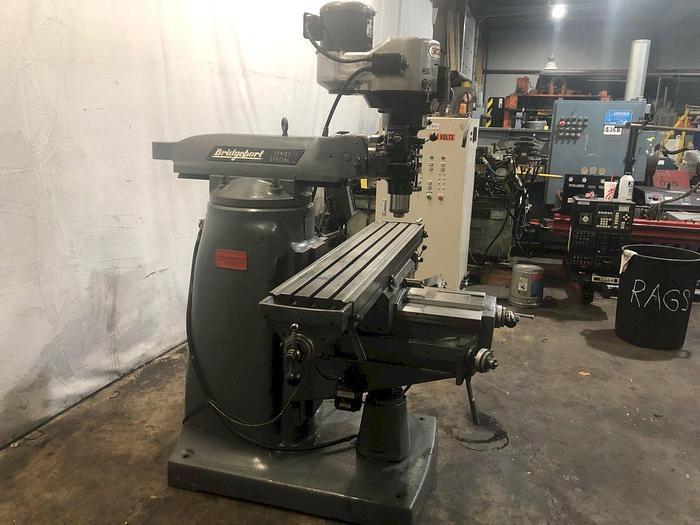

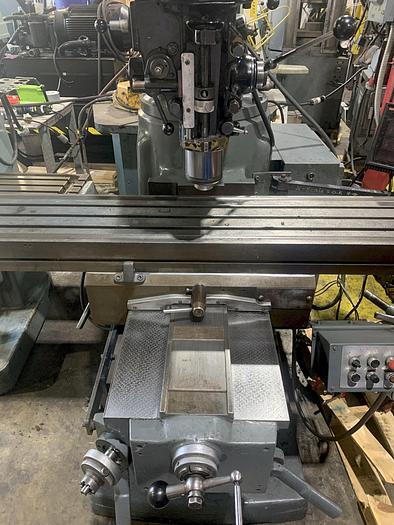

Bridgeport Vectrax Vertical Mill Series II Special Ram Type

BRIDGEPORT VECTRAX VERTICAL MILL SERIES II SPECIAL RAM TYPE

MODEL ........................ SERIES II SPECIAL

TABLE AREA (T-SLOTTED) ....... 58" X 11"

LONGITUDINAL TABLE TRAVEL .... 33"

CROSS TRAVEL ................. 15"

VERTICAL KNEE TRAVEL ......... 16"

RAM TRAVEL ................... 17"

QUILL TRAVEL ................. 5"

QUILL DIAMETER ............... 3-3/8"

SPINDLE SPEEDS (VARIABLE) .... 60 TO 4200 RPM

SPINDLE FEEDS ................ .0015, .003, .006 IPR

MAXIMUM TABLE CAPACITY ....... 1500 LBS

DEPTH OF THROAT .............. 6" MIN, 23" MAX

CHROME TABLE WAYS ............ YES

DIGITAL READOUTS ............. ACCURITE 2 AXIS

1 SHOT LUBE .................. YES

POWER FEED ON TABLE .......... YES

VEXTRAX VARI SPEED HEAD ...... YES

MOTOR ........................ 3 HP
