Heim 300-Ton Straight Side Double Crank Press 300-48-102

Heim 300-Ton Straight Side Double Crank Press 300-48-102

Contact us for price

Location:Mehlville, MO

orCall 419-350-2986

Description

300-TON HEIM STRAIGHT SIDE DOUBLE CRANK PRESS


MFG.......................................HEIM

MODEL ................................ #300-48-102

CAPACITY ............................. 300 TON

STROKE OF SLIDE ....................... 12"

POWER SLIDE ADJUSTMENT ................ 6"

SHUT HEIGHT, SDAU ..................... 24-1/4"

AREA OF BED ........................... 102" X 48"

AREA OF RAM T SLOTTED RAM ............. 102" X 48"

WINDOWS ............................... 26" WIDE

BOLSTER ............................... 102" X 48" X 6-1/4"

STROKES PER MINUTE .................... 18

AIR CLUTCH & BRAKE .................... YES

AIR COUNTER BALANCE ................... YES

FLOOR STANDING ........................ YES

BOLSTER PLATE ......................... T SLOTTED

PALM BUTTONS .......................... DUAL

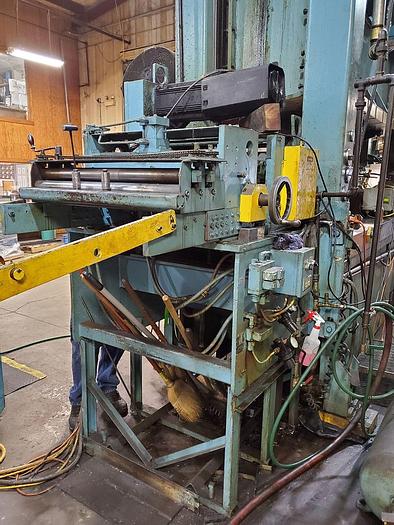

PERFECTO SERVO FEEDER LENGTH .......... 15"

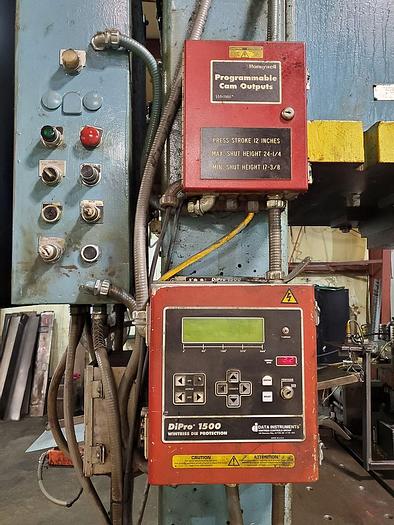

WINTRESS LOAD ANALYZER ................ YES

MOTOR ................................. 20 HORSEPOWER

ALL SPECIFICATIONS SUBJECT TO VERIFICATION

Specifications

ManufacturerHeim 300-Ton Straight Side Double Crank Press
Model300-48-102
ConditionUsed
Stock Number0307248
