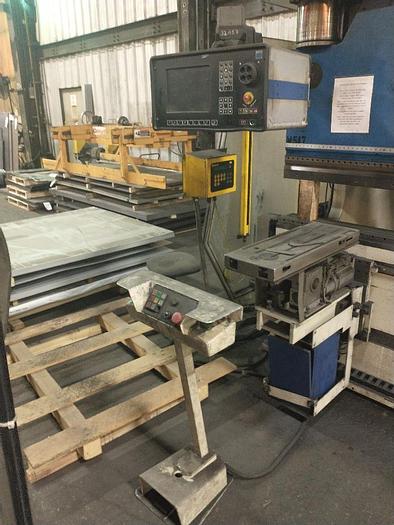

2002 Trumpf 320-Ton x 12' Hydraulic Press Brake Model: V320

357-Ton Trumpf Trumatic V320 Hydraulic Press Brake

Mfg: Trumpf

Model: V320

YOM: 2002

Capacity.............................352 Tons

Overall Length of Bed................13.3′

Distance Between Housings............145″

Stroke...............................14.3″

Throat Depth.........................16″

Open Height..........................21″

Horsepower...........................50

Power Requirement....................3/60

Rapid Advance........................6″

IPS Bending..............................0 to .400

IPS Return Speed.........................5.27 IPS

No. of Axis................................6

Control:.................CNC (Delem DA-65 CNC Control)

Dimensions......212" x 109" x 126"

Weight.......54,000 lbs

All Specifications Subject to Verification
