Gould & Eberhardt 72H Gear Hobber

Gould & Eberhardt 72H Gear Hobber

Contact us for price

Location:Ohio

orCall 419-350-2986

Description

This offering is for (3) Gould & Eberhardt Gear Hobbers, including a large assortment of change gears and tooling as follows:

(1) Gould & Eberhardt 24H Gear Hobber, (1) Gould & Eberhardt 48H Gear Hobber, Gould & Eberhardt 72HWD Gear Hobber - Offering includes all 3 units

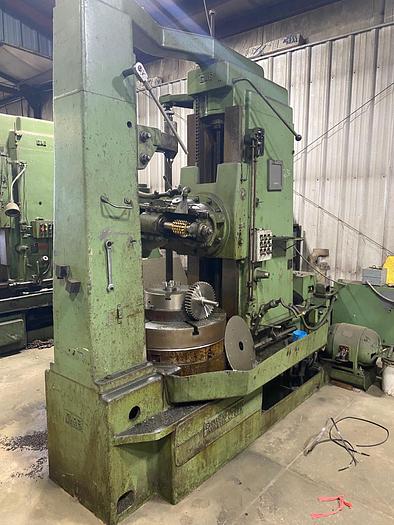

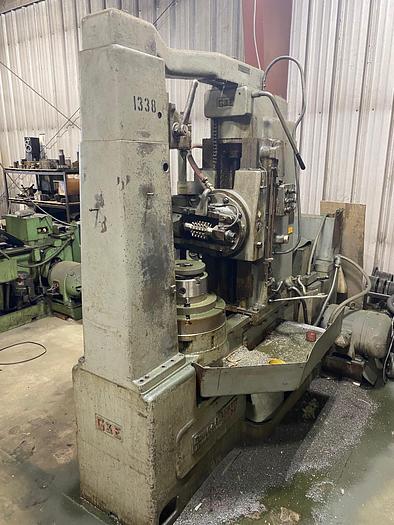

GOULD & EBERHARDT 24H GEAR HOBBER

DIAMETRAL PITCH RATING (MAXIMUM): 3.5 DP

SPUR GEAR DIAMETER (MAXIMUM): 30"

HELICAL GEAR DIAMETER (MAXIMUM) 24"

FACE CAPACITY (SPUR & PINION) 13"

FACE CAPACITY (HELICAL) 10"

WORK TABLE DIAMETER 18

HOB DIAMETER (MAXIMUM) 6"

HOB SPEEDS 86 - 200 RP

INDEX RANGE (INCLUDING PRIMES 8 - 100

INDEX RANGE (EXCLUDING PRIMES) 100 - 200

FEEDS (15) .003 - .250"

MAIN MOTOR 7 HP

DIMENSIONS, APPROX. 100"L x 60"W x 92"H

WEIGHT, APPROX. 12,000 lbs.

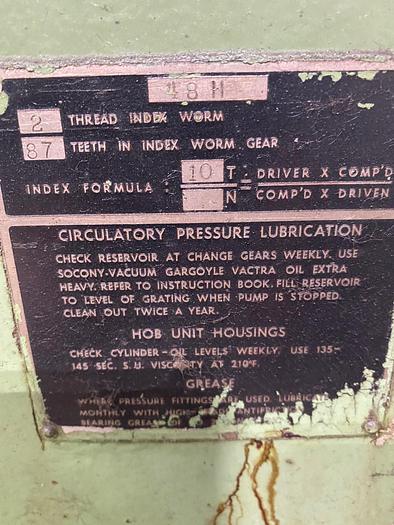

Gould & Eberhardt #48H Gear Hobber

Machine Specifications are as follows

Max Rated Diametral Pitch    2 DP

Face Capacity-Spur and Pinion Gears18″

Face Capacity-45 Deg Helical Gear14″

Max Diameter-Spur Gear with Support32″

Max Diameter-spur Gear with no Support48″

Min Centers Work and Hob Arbors4″

Max Diameter Hob8″

Hob Speed    37-235

Diameter Work Table    32″

Net Weight Full Equipment 21,925 Lbs.

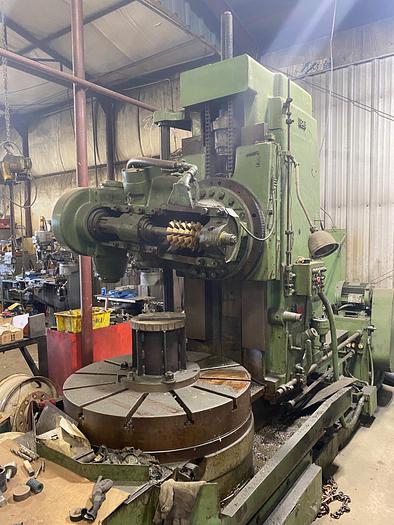

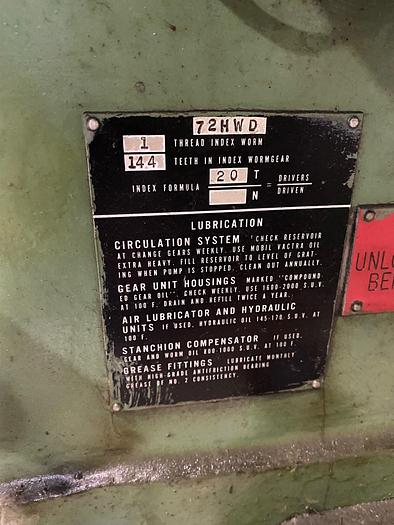

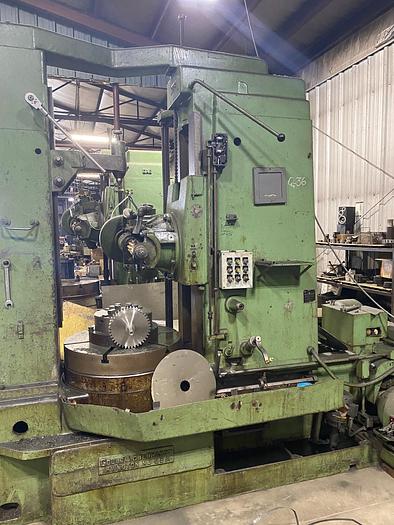

GOULD & EBERHARDT Model: 72 HWD GEAR HOBBING MACHINE

Model 72 HWD

Machine specifications are as follows:

Max. DP in Steel.....................................................1. DP

Face Capacity............................................................30"

Max. Dia Spur Gear w/ Support............................................48"

Max. Dia Spur Gear w/o Support...........................................80"

Max. Dia Helical Gear w/o Sup (45 Deg)...................................78"

Min Centers Work & Hob Arbors.............................................3"

Max. Diameter Hob.....................................................10.75"

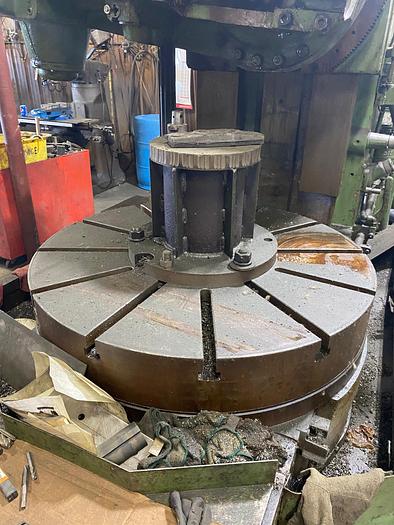

Diameter of Work Table...................................................40"

Diameter of Index Worm Gear..............................................48"

Hob Speed Ranges................................................6 - 100 RPM

Feed Range...................................................... .03 - .200"

Main Motor............................................................15 HP

Approx. Dimensions................................................90" x 207"

Approx. Weight...................................................38,000 Lbs


MACHINE IS EQUIPPED WITH The Following:

*Automatic Single Indexing

*Differential

*Infeed

*Tailstock for large Pinions

*Hob Arbors

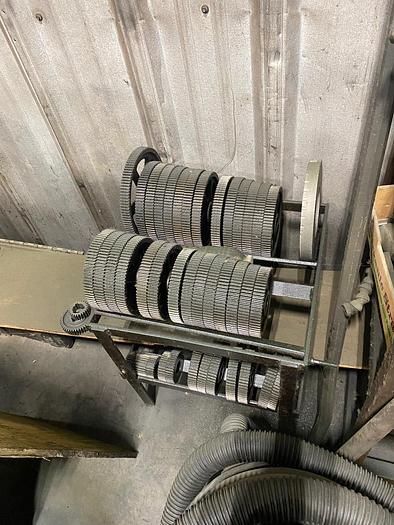

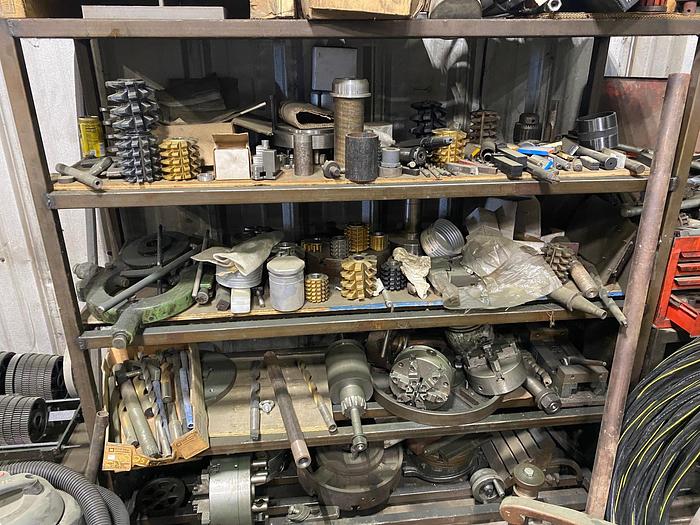

*Large assortment of change gears

*Misc Tooling



All specifications subject to verifications -- Units are in-plant and under-power

Specifications

ManufacturerGould & Eberhardt
Model72H Gear Hobber
ConditionUsed
Stock Number0307216
