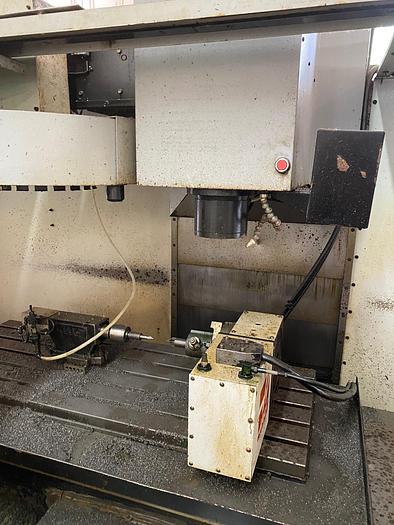

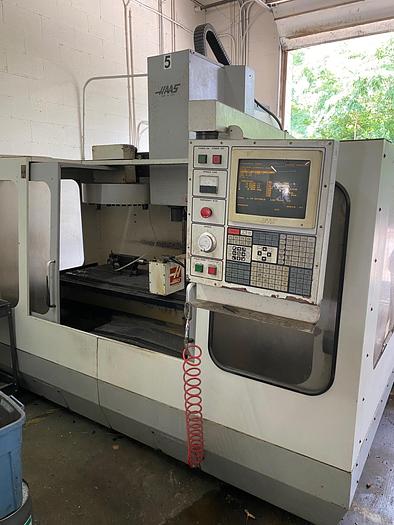

1994 Haas VF3 Vertical CNC Machining Center with 4th Axis

1994 Haas VF3 Vertical CNC Machining Center with 4th Axis

Travels:

X-Axis: 40″

Y-Axis: 20″

Z-Axis: 25″

Rapid Traverse Rates: 710 Inch Per Minute

Cutting Feed Rates: 500 Inch Per Minute

Spindle Nose to Table (Min.- Max.): 4″ – 29″

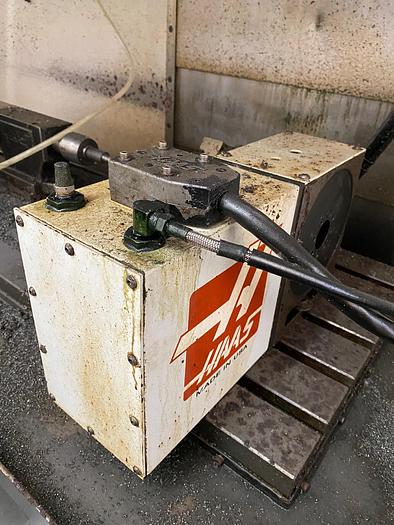

4th Axis with Haas Rotary Index

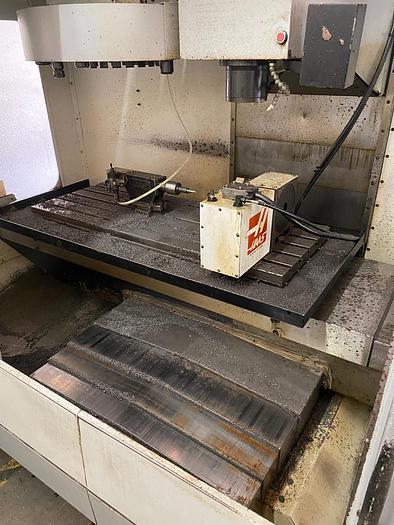

Table:

Length: 48″

Width: 18″

Number of Std T-Slots: 5

T-Slot Width: 5/8″

Max Weight on Table: 1500 lbs

Spindle:

Taper Size: 40

Speed Range: 0 – 7500 RPM

Spindle Type: Gear Head

Spindle Power: 20 HP Vector Dual Drive

Max Torque: 90ft-lb @ 2000 RPM

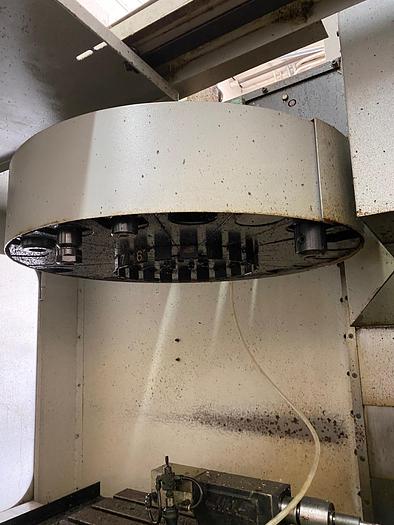

Automatic Tool Changer:

Capacity: 20 + 1

Max Tool Weight: 12 lbs

Max Tool Dia: 3.6″

Max Tool Length: 13″

Tool Changing Time: 4.2 Seconds

General:

Air Required: 100 psi, 4 scfm

Power: 220v / 66FLA / 3-Phase

Overall Dimensions: 118″ x 98″ x 100″ High

Weight: 12,500 lbs

Additionally vector drive was replaced in 2019.

Haas VF-3 Features:

20HP High Torque Geared Head Spindle

2 Speed Gearbox

20 + 1 automatic tool changer

Programmable coolant

Telescopic way covers

Chip auger

Floppy Drive

Flood Coolant system

Under Power & Video Available

All Specifications subject to verification
